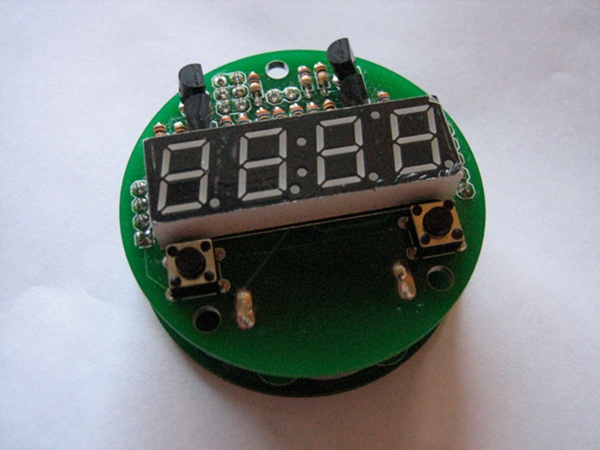

The TouchClock is a simple digital clock that senses when it is held.


The digits are typically unlit, but when it is picked up they light up to tell you the time.

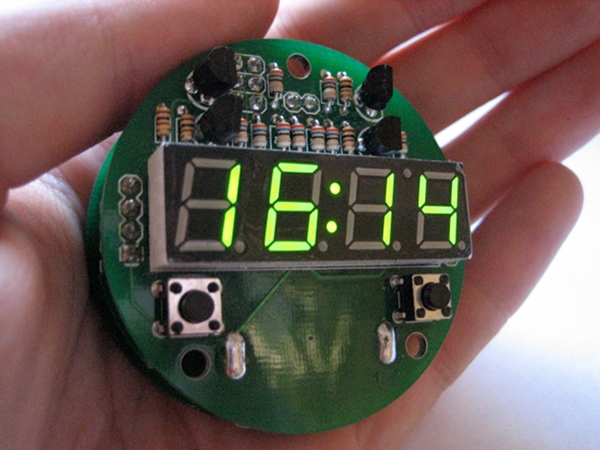

When held


The clock is made from a pair of PCBs, stacked on top of each other. They were designed in Eagle and fabricated by BatchPCB

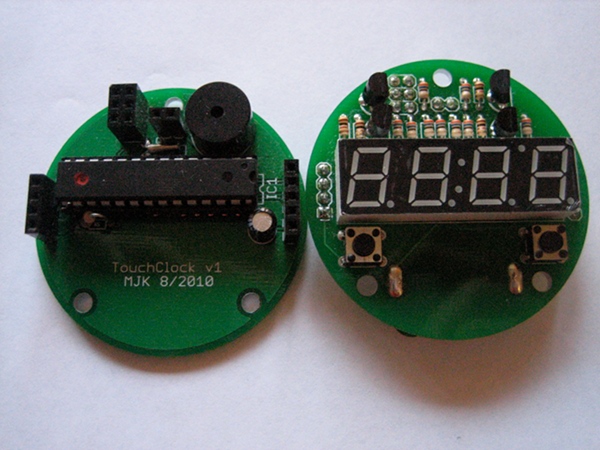

Top view

Touch Detection

The bottom of the lower PCB is a large copper plane. The time taken to charge this plane through a large resistor is an RC time constant. Because R is large, small changes in C can be detected.

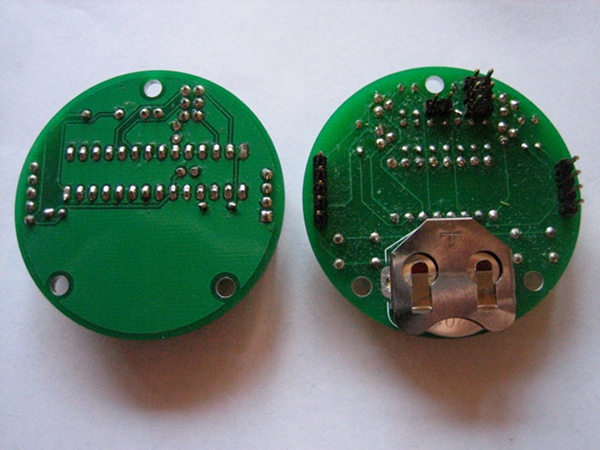

Bottom view

The code uses the CapSense Arduino library to handle the charge timing.

Battery Life

The clock uses a quartz clock crystal and sleep modes to maximize battery life. The crystal is wired to timer pins on the microcontroller. It wakes up once per second (when the timer overflows), checks for a nearby hand, then falls back asleep if no one is nearby.


Code (pde file)

Boards (zipped Eagle files, 45 KB)

BOM (Excel file, 49 KB)
