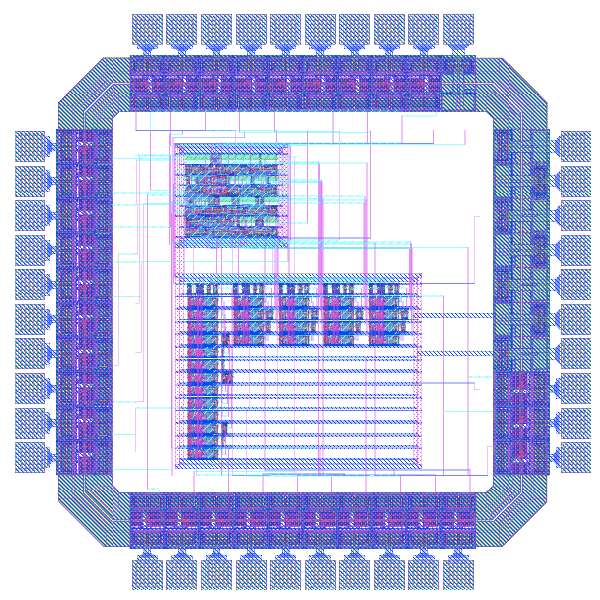

This chip acts as the brains for a stopwatch, outputting a running count to four seven-segment displays.


Chris Ferguson and I made the system as our final project for VLSI

It is a mix of custom and synthesized logic. The synthesized block was compiled from Verilog and controls the seven-segment diplays. The custom block keeps track of time, and was laid out by hand.

Read More

Final report (PDF, 2.5 MB)
